Purified Water Equipment

Stainless Steel Purified Water Equipment

A stainless steel double-pass RO system for cleaner production rooms where equipment material, hygienic storage and downstream sanitization matter alongside conductivity.

Check required dataBack to Purified Water Equipment
0.5-20 m3/h typical project range stainless steel purified water equipment configured for purified water equipment
Quick quotation

Confirm this equipment for your project

Send source water, flow rate, voltage and target quality. We will confirm whether this model fits before quotation.

WhatsApp engineer
  • ProcessPretreatment + double-pass RO + sanitary downstream treatment
  • Product conductivityProject target confirmed from feed water and applicable standard
  • RO desalination>=99.5% overall reference under suitable conditions
  • Equipment frame304 or 316L stainless steel
  • Product-water piping304/316L stainless steel or sanitary project specification
  • Surface finishSanitary finish selected by project requirement

Factory direct supply, project configuration, packing and voltage checked before price.

PARAMETERS

Technical Specifications

ParameterValue
ProcessPretreatment + double-pass RO + sanitary downstream treatment
Product conductivityProject target confirmed from feed water and applicable standard
RO desalination>=99.5% overall reference under suitable conditions
Equipment frame304 or 316L stainless steel
Product-water piping304/316L stainless steel or sanitary project specification
Surface finishSanitary finish selected by project requirement
DisinfectionUV, ozone, hot-water or chemical sanitization options
Storage and loopSanitary tank and recirculation loop by project
ControlPLC with conductivity monitoring, divert and sanitization interlocks
APPLICATIONS

Typical Applications

ApplicationWhere this equipment fits
Application 1Food and beverage ingredient water
Application 2Cosmetics and personal-care production
Application 3Clean process-water rooms
Application 4Projects requiring stainless construction and sanitary distribution
PROCESS FLOW

Stainless steel purified-water process

Pretreated feed passes through two RO stages before entering a protected stainless product-water system. The final configuration can include UV, ozone, sanitary storage, recirculation, heat sanitization and terminal filtration according to the use-point requirement.

  • Pretreatment and precision filtration
  • Two stainless-mounted RO stages
  • Intermediate buffer and dosing section
  • Online conductivity monitoring and quality divert
  • Sanitary product-water tank
  • Recirculation pump and distribution loop
  • UV, ozone or heat-sanitization modules
  • PLC cabinet with sanitization controls

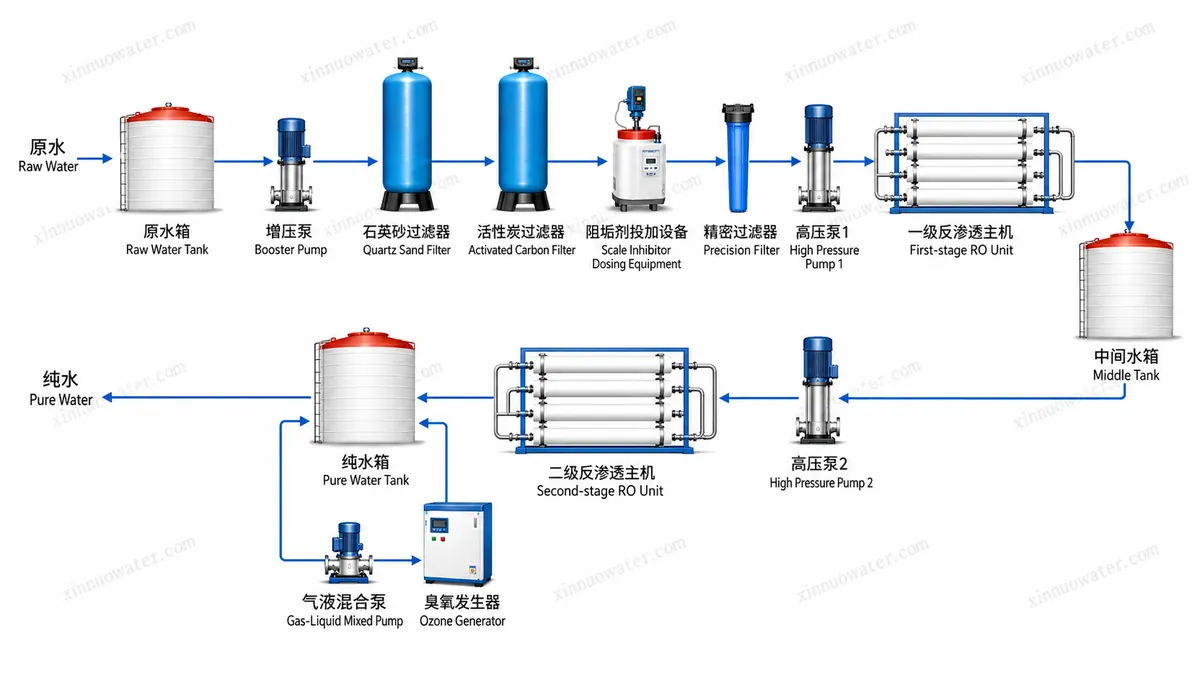

Stainless Steel Purified Water Equipment process flowchart
Stainless Steel Purified Water Equipment process route used for engineering discussion before quotation.
WATER TREATMENT PRINCIPLE

Purified water is a complete room system

Purified-water equipment must control both water production and the risk of recontamination after the RO system.

Material selection, tank venting, dead-leg control, sanitization and recirculation can be as important as RO conductivity for the final use point.

The exact process must be matched to the buyer's applicable standard and cleaning procedure.

WHY THIS ROUTE

Practical advantages for selection

  • Stainless construction for cleaner equipment rooms
  • Double-pass RO for lower conductivity
  • Sanitary storage, disinfection and loop options
  • One project page keeps equipment and downstream distribution aligned
MODEL RANGE

Available Configurations

Model rangeBest fitSelection note
0.5-1 m3/h compact purified-water skidSmall clean production roomIntegrated stainless frame with double-pass RO
2-5 m3/h purified-water systemMedium production lineSanitary tank and distribution options selected by use point
10-20 m3/h project systemCentral purified-water roomMulti-skid layout with loop and sanitization engineering
PROJECT OPTIONS

Configuration Options

  • 316L product-water piping
  • Sanitary tank with spray ball
  • UV and ozone
  • Hot-water sanitization
  • Loop return conductivity and temperature monitoring
QUOTE DATA

Before quotation, send these details

  • Required product-water flow and daily operating hours
  • Raw-water source, TDS and full analysis report when available
  • Target conductivity, resistivity or application standard
  • Destination country, voltage, phase and frequency
  • Installation space, tank arrangement and connection points
  • Required automation, monitoring and installation support
  • Applicable product-water standard and sanitization method
  • Tank volume, loop length, use points and return conditions
BUYER QUESTIONS

Questions buyers usually ask before quotation.

Use these checks to decide whether the route is close enough before sending water data.

Is every stainless RO system purified-water equipment?

No. Purified-water projects also require the correct process target, sanitary storage, distribution and sanitization strategy.

Should 304 or 316L stainless steel be used?

The choice depends on the water standard, cleaning chemistry, chloride exposure, budget and buyer specification.

Can a loop be included in the quotation?

Yes. Provide tank volume, loop length, pipe size, use-point count, return flow and sanitization method.
